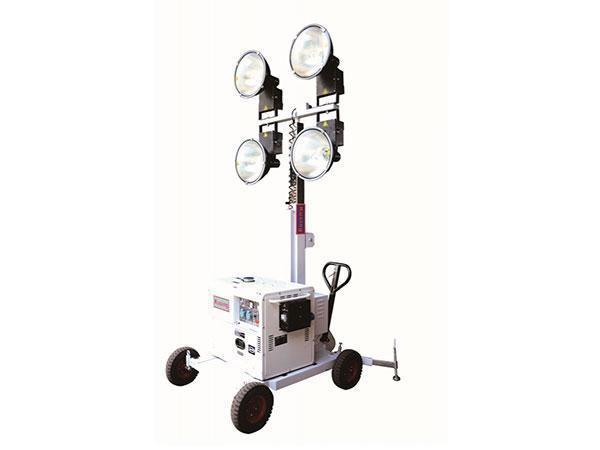

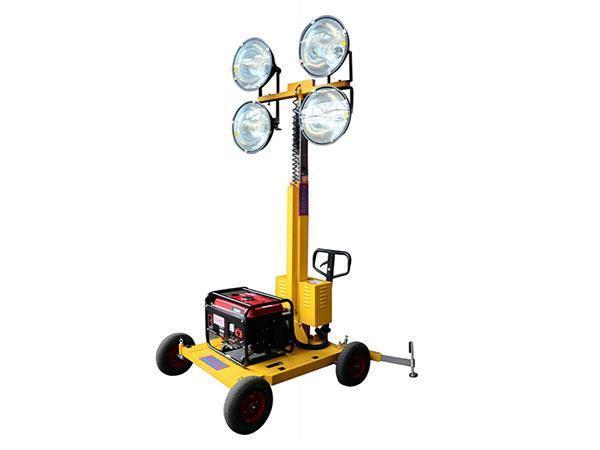

M500 light tower generator is equipped with an adjustable mast, and the light tower generator enjoys a small size, allowing a convenient transportation.
Technical Parameters| Standard Equipment | M500A | M500B | ||||
| Length(mm) | 1310 | |||||
| Width(mm) | 1090 | 1090 | ||||
| Height(mm) | 2320 | |||||
| Height(Mast be extended fully,m) | 4.550 | |||||
| Weight (Dry,kg) | 128 | 123 | ||||
| Genset Model | Kusing6700 | Kusing6700 | ||||
| Frequency (Hz) | 50 | 60 | 50 | 60 | ||
| Speed (rpm) | 3000 | 3600 | 3000 | 3600 | ||
| Continued Power (KVA) | 4.5 | 5 | 4.5 | 5 | ||
| Number of Cylinders | 1 | |||||
| Diesel Engine Characters | 4-cycle,In line, Air-cooled Diesel | |||||
| Combustion Type | Direct injection | |||||
| Engine Aspiration | Naturally aspirated | |||||
| Alternator | Single phase | |||||
| Rating Voltage (V) | 230 | |||||
| Fuel tank capacity | 15 liters(4US gallons) | |||||
| Operating hours with full fuel | More Than 8 hours | More than 8 hours | ||||
| Type of Lights | Metal halide spotlight(E40/E39,local brand) | Halogen lamp | ||||
| Number & Power of lights | 4*400W | 2*1000W | ||||
| Mas extension | Manually | |||||
| Number of mast Section | 4 | |||||
| Light bar tilt | Manually | |||||
| Stabilizing legs | Manually | |||||
| Output Sockets | 1 Piece(230V,10A) | |||||
| Acoustic Pressure | 75dB(A) at 7 meters away | |||||
| Max.load quantity in 20' container(sets) | 10 | 10 | ||||
| Optional equipment& upgrades: | More than 3KW Genset | |||||
M500 light tower generator features:
1. Three-section adjustable mast is used in the light tower, which could be manually operated.
2. Lamp's height is adjustable, and the max. height could arrive to 4.55 meters. And even when the lamp is adjusted to the min. height, manually adjustment for light injection could also be achieved easily.
3. The design of adjustable mast allows our M500 light tower operate stably when traveling in uneven road.
4. Lamp post could rotate manually in 360 degrees.
5. Industrial socket's adoption for main power grid provides electricity for both main power grid and other mechanical units, which helps to reduce unnecessary fuel consumption and noise pollution.
