| Model | |||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 220.0 | 233.8 |
| KW | 176.0 | 187.0 | |
| Rated Power | KVA | 200.0 | 212.5 |
| KW | 160.0 | 170.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 289 | 307 |
| Fuel Consumption | G/KW.H | ≤212 | |

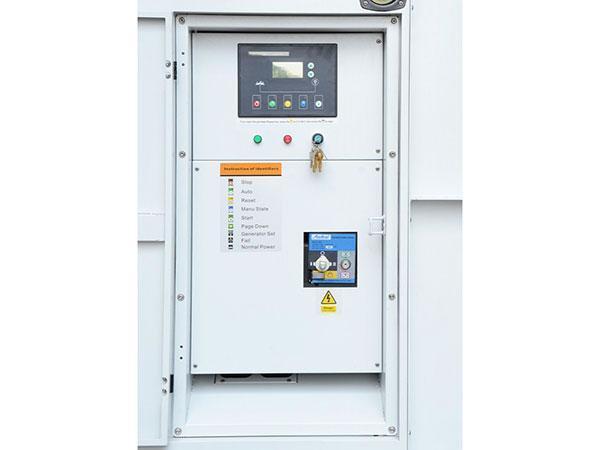

| Generator Controller | Auto Multi-function | ||
| Engine Model. | 6CTA8.3-G2 | ||
| Alternator Model. | TCU288D | ||
| Clinder No. | 6/L | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 3600*1200*1800 | |
| Open Type | 2540*980*1400 | ||
| Optional | ATS (auto transfer switch) | ||
- Home
- Products
- Cummins Powered Diesel Generator
- CK31600 Cummins Powered Diesel Generator

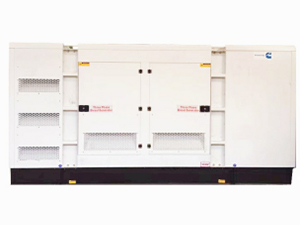

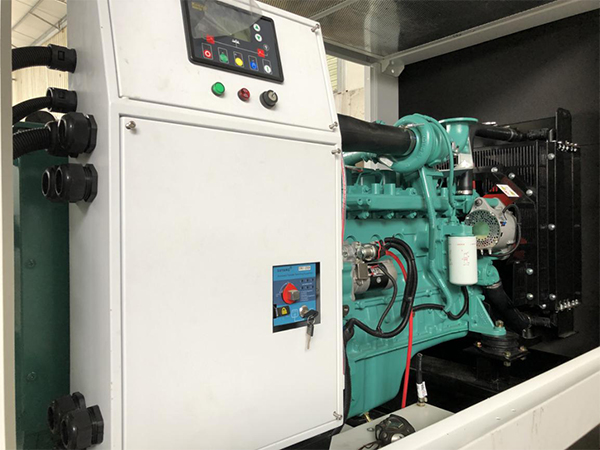

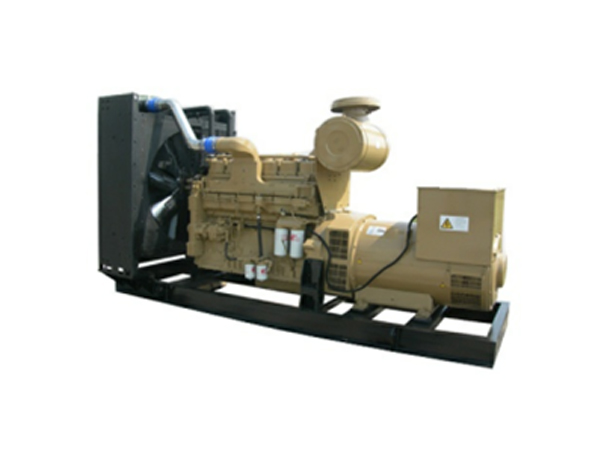

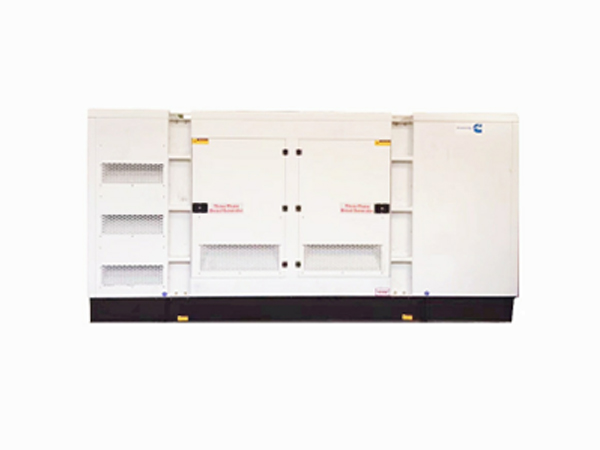

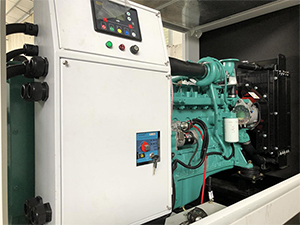

CK31600 Cummins Powered Diesel Generator
Kusing is a professional industrial diesel generator manufacturer, CK31600 Cummins engine powered 160KW 50HZ and 170KW 60HZ diesel generator supplier, there are a wide range of diesel gensets with power ranging from 10KVA to 2000KVA, such as Perkins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
