| Model | |||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 33 | 38.5 |
| KW | 26.4 | 30.8 | |
| Rated Power | KVA | 30 | 35 |
| KW | 24 | 28 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 43.30 | 50.52 |
| Fuel Consumption | G/KW.H | ≤214 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | 1103A-33G | ||
| Alternator Model. | GM-24-4 | ||
| Clinder No. | 3L | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 1850*750*1100 | |
| Open Type | 1500*735*1135 | ||
| Optional | ATS (auto transfer switch) | ||
- Home
- Products
- Perkins Powered Diesel Generator
- PGK30240 Perkins Powered Diesel Generator

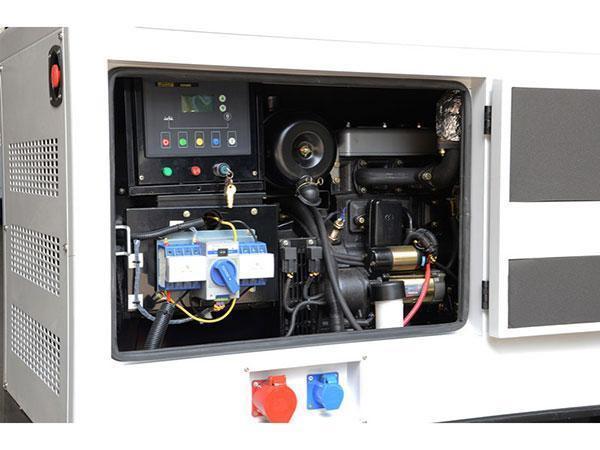

PGK30240 Perkins Powered Diesel Generator
Kusing is a professional industrial diesel generator manufacturer, PGK30240 Perkins engine powered 24KW 50HZ and 28KW 60HZ diesel generator supplier, there are a wide range of diesel gensets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
