Details

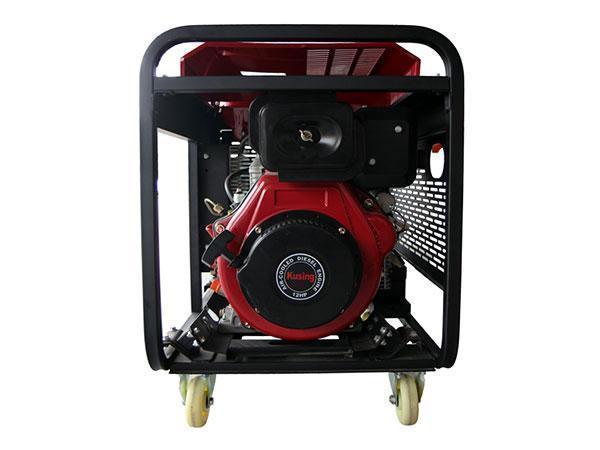

AXC-180A(E)
Portabale Diesel Generator&Welder
Features
1. Single-cylinder, 4-stroke, air-cooled diesel engine, vertical
2. Electric starter and recoil (both are available)
3. Low fuel consumption
4. Low oil shutdowm system
5. AVR ensure stable voltage and current
6. Reduce environmental impact and improve productivity
7. 12V DC 8.3A output
8. Steady steel frame
9. Wheel+handle
10. Battery for the starter
| Working Amperage(A) | 50-190 |
| No-loading Voltage(DC)V | 62-90 |
| Working Voltage(DC)V | 25-28 |
| Adjective Power(kw) | 2 |
| Adjective Voltage(DC)V | 230 |
| Rated Rotation(rpm) | 3600 |
| Working Type | Continue |
| Load continous rate ％ | 60% |
| Insulation class of generator | B |
| Cool type of engine and generator | Air-cooling |
| Protection class of generator cover | 1P23 |
| Engine Power | 16HP |
| Starting System | Electric Start |
| Engine Model | |
| Fuel tank capacity(L) | 25 |
| N.W/G.W(kg) | 96/98 |
| Dimension(L*W*H)mm | 700*695*580 |
| 20FT(set) | 132 |
