PK30400 Lovol Powered Diesel Generator

Technical Parameters
Model PK30400
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 55.0 55.0
KW 44.0 44.0
Rated Power KVA 50.0 56.3
KW 40.0 45.0
Rated Voltage V 400 400
Rated Current A 72 81
Fuel Consumption G/KW.H ≤218

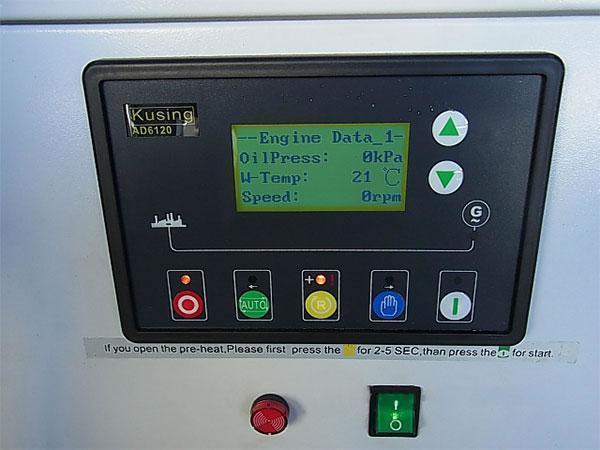

Generator Controller Auto Multi-function
Engine Model. 1003TG

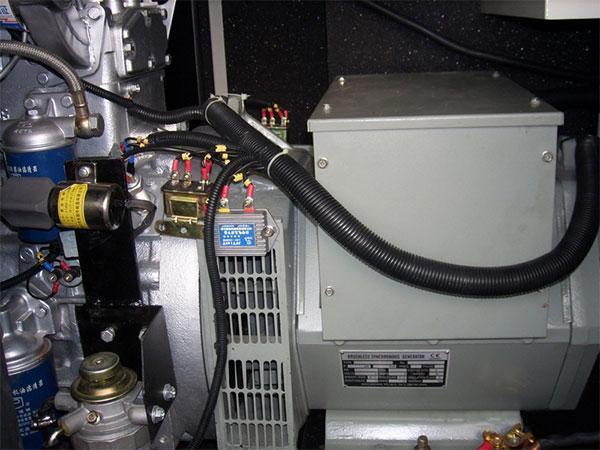

Alternator TCU228B
Clinder No. 3
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H

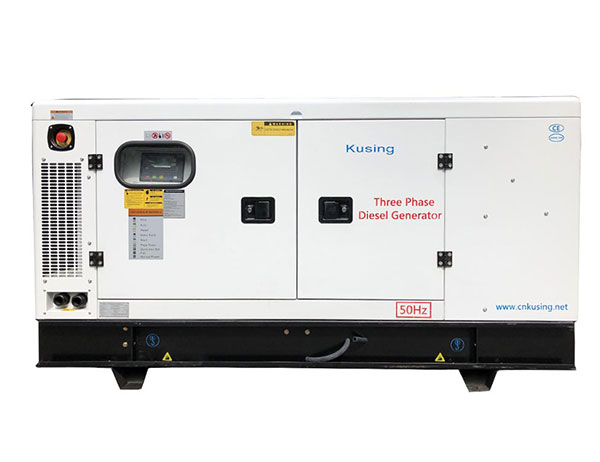

Size (MM) Silent Type 2250*950*1250
Open Type 1780*750*1100
Optional ATS (auto transfer switch)

Kusing is a reliable industrial diesel generator manufacturer, PK30400 Lovol engine powered 40KW 50HZ and 45KW 60HZ diesel generator supplier, there are a wide range of diesel gensets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Perkins engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
