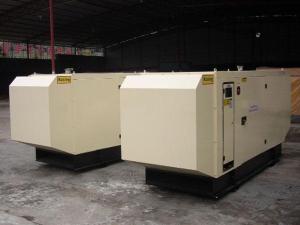

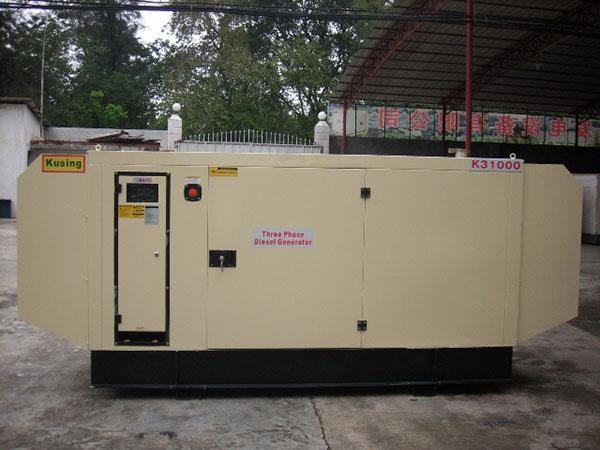

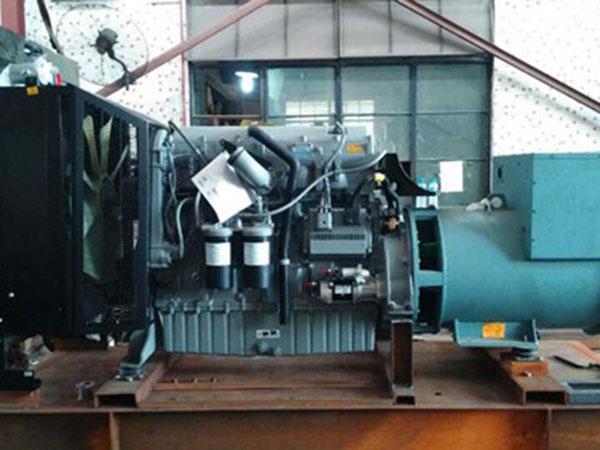

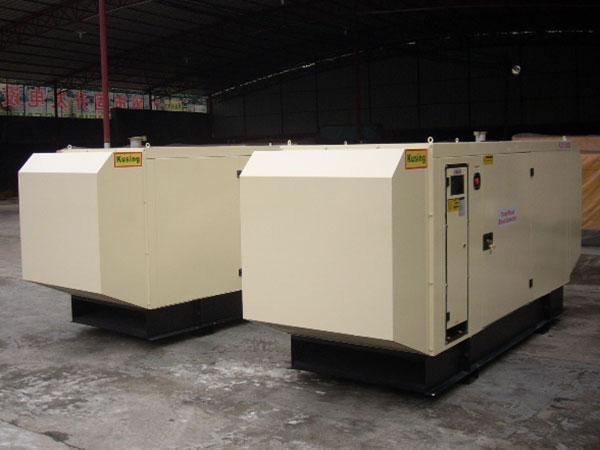

PK33500 Perkins Powered Diesel Generator

Technical Parameters
Model PK33500
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 481.25 550
KW 385 440
Rated Power KVA 437.5 500
KW 350 400
Rated Voltage V 400 400
Rated Current A 631.50 721.71
Fuel Consumption G/KW.H ≤204
Generator Controller Auto Multi-function
Engine Model. 2206A-E13TAG6
Alternator Model. MP-350-4A/S
Clinder No. 6L
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H
Size (MM) Silent Type 4800*1700*2250
Open Type 3250*1150*1990
Optional ATS (auto transfer switch)

Kusing is a leading industrial diesel generator manufacturer, PK33500 Perkins engine powered 350KW 50HZ and 400KW 60HZ diesel generator supplier, there are a wide range of diesel generating sets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
