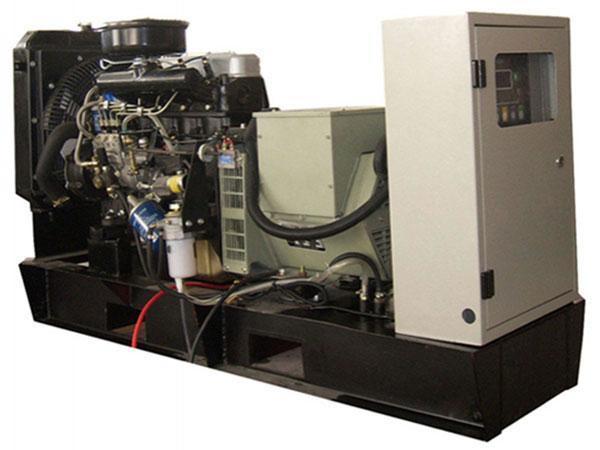

PK32200 Perkins Powered Diesel Generator

Technical Parameters
Model PK32200
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 302.5 357.5
KW 242.0 286.0
Rated Power KVA 275.0 325.0
KW 220.0 260.0
Rated Voltage V 400 400
Rated Current A 397 469
Fuel Consumption G/KW.H ≤214 ≤214

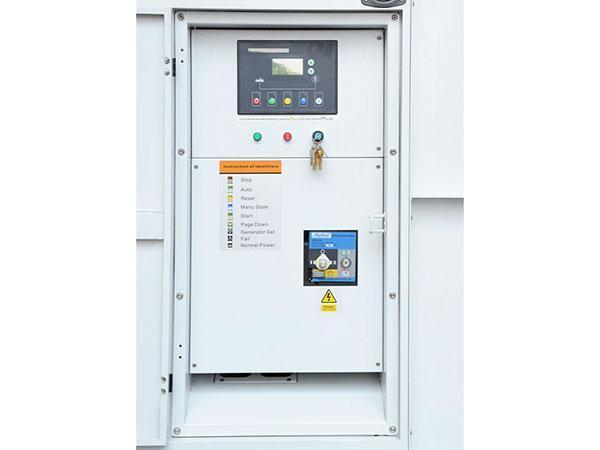

Generator Controller Auto Multi-function
Engine Model. 1606A-E93TAG4
Alternator Model. MP-220-4
Clinder No. 6L
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H

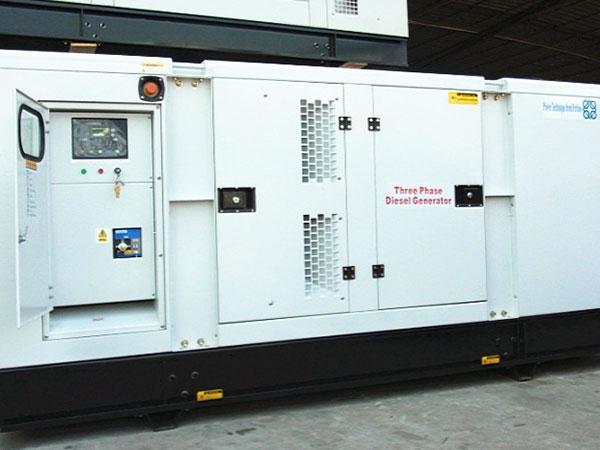

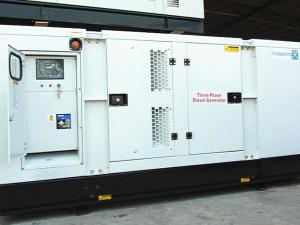

Size (MM) Silent Type 4000*1200*1900
Open Type 2600*950*1630
Optional ATS (auto transfer switch)

Kusing is a leading industrial diesel generator manufacturer, PK32200 Perkins engine powered 220KW 50HZ and 260KW 60HZ diesel generator supplier, there are a wide range of diesel generating sets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
