PK31600 Perkins Powered Diesel Generator

Technical Parameters
Model PK31600
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 220 247.5
KW 176 198
Rated Power KVA 200 225
KW 160 180
Rated Voltage V 400 400
Rated Current A 288.68 324.77
Fuel Consumption G/KW.H ≤205

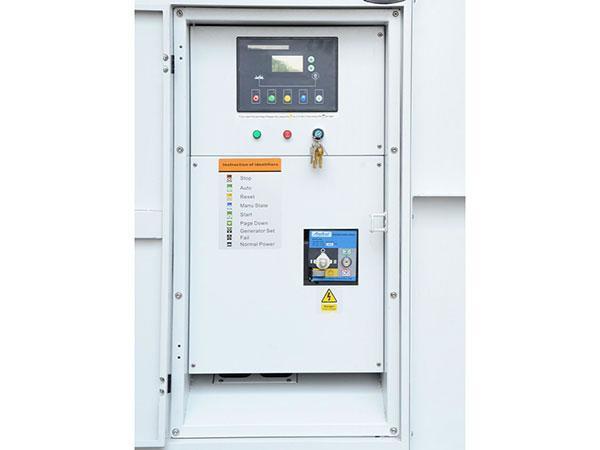

Generator Controller Auto Multi-function

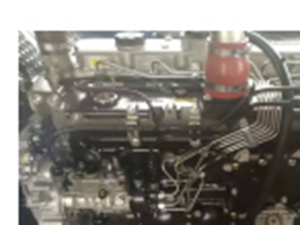

Engine Model. 1106A-70TAG4
Alternator Model. MP-160-4
Clinder No. 6L
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H

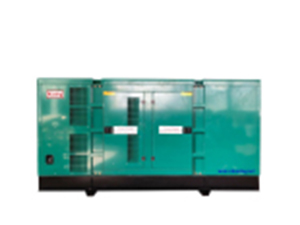

Size (MM) Silent Type 3600*1100*1600
Open Type 2400*820*1400
Optional ATS (auto transfer switch)

Kusing is a professional industrial diesel generator manufacturer, PK31600 Perkins engine powered 160KW 50HZ and 180KW 60HZ diesel generator supplier, there are a wide range of diesel generating sets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
