+86-20-83495137| Model | |||
| Phase | 3 Phase | ||
| Power Factor | 0.8 cosØ | ||
| Frequency | 50HZ | ||
| Speed | RPM | 1500 | |
| Max.Power | KVA | 715.0 | |
| KW | 572.0 | ||
| Rated Power | KVA | 650.0 | |
| KW | 520.0 | ||
| Rated Voltage | V | 400 | |
| Rated Current | A | 938 | |
| Fuel Consumption | G/KW.H | ≤202 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model | 2806A-E18TAG2 | ||
| Alternator Model | MP-500-4A/S | ||
| Clinder NO. | 6L | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size(MM) | Silent Type | 5200*1860*2550 | |
| Open Type | 3650*1600*2050 | ||
| Optional | ATS(auto transfer switch) | ||
Skid Mounted Genset List
- 24kW Cummins Engine Powered Diesel Generator
- 300kW Cummins Engine Powered Diesel Generator
- 1800kW Cummins Engine Powered Diesel Generator
- 250kW Perkins Engine Powered Diesel Generator
- 520kW Perkins Engine Powered Diesel Generator
- 60kW Volvo Engine Powered Diesel Generator
- 370kW Volvo Engine Powered Diesel Generator
- 100kW Kusing Engine Powered Diesel Generator
- 220kW Kusing Engine Powered Diesel Generator
- Home
- Products
- Skid Mounted Genset
- 520kW Perkins Engine Powered Diesel Generator

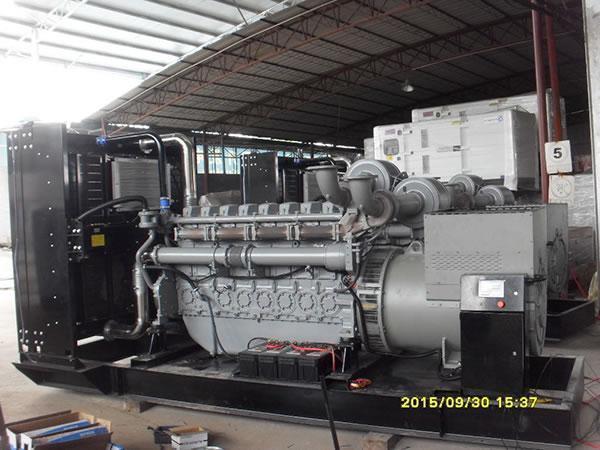

520kW Perkins Engine Powered Diesel Generator
Perkins is the world leading non-road diesel engine designer and manufacturer with 85 years of experiences, supplying product that has power ranges between 4 to 2000kW. Perkins became the subsidiary of Caterpillar Inc since 1997 to become the world's largest engine manufacturing company.
