Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	CK32000	CK32000A	CK32000SS	CK32000SSA
	Prime Power Rating	250KVA/200KW
	Standby Power Rating	275KVA/220KW
	Size(mm)	2650*1050*1540		3800*1300*1900
	Weight(KG)	2150		3380
	Internal protection	IP22
	Rate current(A)	361
	Specific Fuel Consumption(L/H)@100% Load	35.7
	Noise at 7 meters away(dB)	N/A		75dB

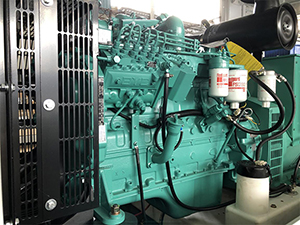

Engine	Model	Cummins MTA11-G2 / 6LTAA8.9-G2
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	114
	Stroke(mm)	135
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	8.9
	Lub Oil Sump Capacity(Ltrs)	23.8
	Coolant Capacity(Ltrs)	24.3
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S274G200E
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

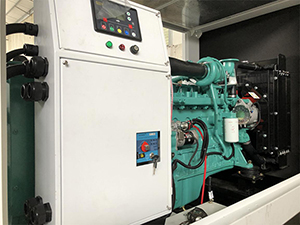

Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
