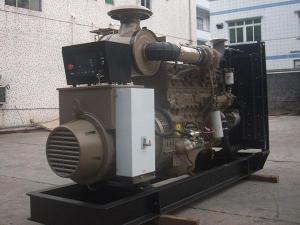

CK31800 Cummins Powered Diesel Generator

Technical Parameters
Model CK31800
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 247.5 261.3
KW 198.0 209.0
Rated Power KVA 225.0 237.5
KW 180.0 190.0
Rated Voltage V 400 400
Rated Current A 325 343
Fuel Consumption G/KW.H ≤208

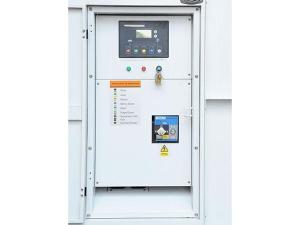

Generator Controller Auto Multi-function
Engine Model. 6CTAA8.3-G2
Alternator Model. TCU288E
Clinder No. 6/L
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H
Size (MM) Silent Type 3600*1200*1900
Open Type 2540*1050*1400
Optional ATS (auto transfer switch)

Kusing is a leading industrial diesel generator manufacturer, CK31800 Cummins engine powered 180KW 50HZ and 190KW 60HZ diesel generator supplier, there are a wide range of diesel gensets with power ranging from 10KVA to 2000KVA, such as Perkins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
